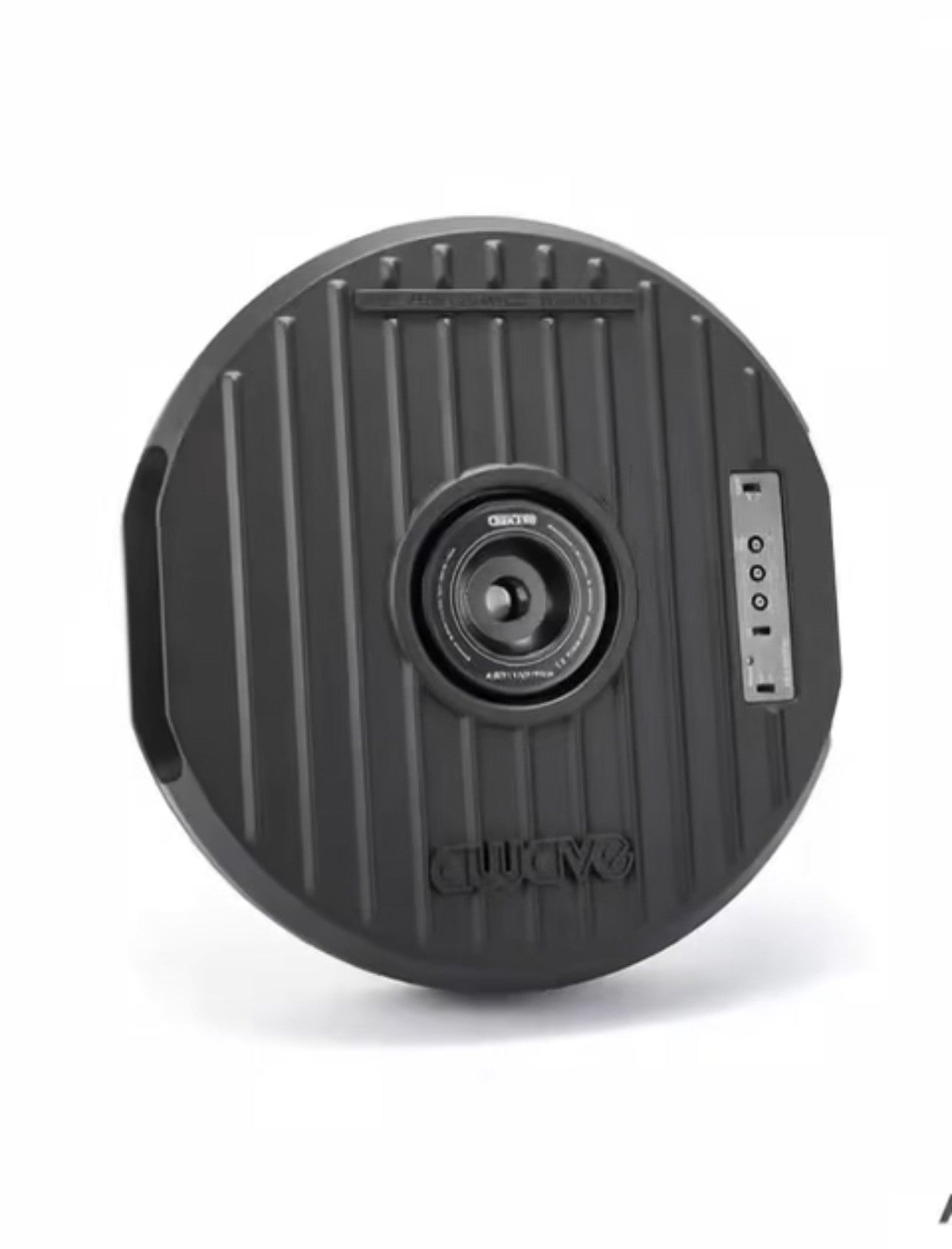

The Awave AST-11TV6 Spare Tire Subwoofer is a high-performance active car audio subwoofer designed to deliver deep, accurate bass without sacrificing your cargo space. Instead of a bulky box in your trunk, this innovative unit fits neatly into the spare wheel well of most cars with 15-inch or larger spare wheels, keeping your interior clean and usable while massively upgrading your audio experience.
Built around an 11-inch driver and a powerful built-in Class-D amplifier, the AST-11TV6 produces strong low frequencies (25โ150 Hz) with clarity and minimal distortion โ perfect for genres like EDM, hip-hop, rock, and even orchestral or acoustic music. Its sealed cast-aluminum enclosure provides rigidity, excellent thermal performance, and low resonance, resulting in a punchy, controlled bass response that blends well with factory or aftermarket speakers.
Installation is straightforward thanks to plug-and-play wiring that accepts both high-level (speaker) and low-level (RCA) signals, and a remote control lets you adjust volume and bass on the fly from the driverโs seat. This makes the AST-11TV6 a practical and elegant solution for car owners who want powerful bass without the hassle or space sacrifice of traditional subwoofer boxes.
๐ Key Specifications
| Feature | Specification |
|---|---|
| Model | Awave AST-11TV6 (Spare Tire Active Subwoofer) |
| RMS Power | 500 W (Class-D internal amplifier) |
| Frequency Response | 25 Hz โ 150 Hz |
| Total Harmonic Distortion (THD) | < 0.5 % |
| Signal-to-Noise Ratio (S/N) | > 95 dB |
| Driver Size | 11 inch, ~0.15 ฮฉ impedance |
| Input Types | High-Level & Low-Level (RCA) |
| Input Sensitivity (High Level) | ~260 mV โ 12 V |
| Input Sensitivity (Low Level) | ~50 mV โ 3 V |
| Low-Pass Filter (LPF) | Adjustable 50 Hz โ 150 Hz |
| Bass Boost | 0 to +6 dB |
| Subsonic Filter | 25 Hz |
| Remote | Yes โ volume & bass control |
| Mounting Requirement | Spare wheel well โฅ 15 inch |
| Enclosure | Sealed cast aluminum |
๐ Notable Features
๐ Space-Saving Design
Instead of a traditional subwoofer box, the AST-11TV6 installs right into your spare tire well โ keeping your trunk clean and functional with no loss of cargo room.
๐ Integrated Class-D Amplifier
Delivers efficient, powerful bass with minimal heat and distortion right out of the box โ no external amp required.
๐๏ธ Flexible Tuning
Adjustable low-pass filter and bass boost let you tailor the subwooferโs output to match your music preferences and system setup.
๐ก Easy Installation & Remote Control
High-level and RCA input options plus a convenient remote control make setup and daily operation a breeze.
๐ ๏ธ Premium Build
The sealed aluminum enclosure reduces unwanted vibrations and protects internal components from heat and moisture, improving longevity and performance.
